Surface Resistance Test for FRP Grating Guide

Technical Specification for Surface Resistance Test of FRP Grating

When working with Fiber Reinforced Plastic (FRP) grating, understanding its surface resistance is crucial for ensuring safety and durability in various applications. This article outlines the technical specifications for conducting a surface resistance test on FRP grating, providing a straightforward guide for industry professionals and engineers.

What is FRP Grating?

FRP grating is a composite material made from a matrix of resin and fiberglass. It is widely used in environments that require corrosion resistance, lightweight structures, and high strength. Common applications include walkways, platforms, and decks in industrial settings.

Why Conduct a Surface Resistance Test?

The surface resistance test is essential for determining the electrical conductivity of the FRP grating. This property is vital in environments where static electricity could pose a risk, such as chemical plants or areas with flammable materials. Ensuring the correct surface resistance can prevent hazardous situations and extend the lifespan of the grating.

Test Methodology

The surface resistance test for FRP grating is typically conducted according to international standards, such as ASTM or ISO. The following steps outline a general procedure for this test:

Preparation

  1. Sample Selection: Choose a representative sample of the FRP grating, ensuring it is clean and free from contaminants.
  2. Conditioning: Condition the sample in a controlled environment, typically at 23°C and 50% relative humidity, for at least 24 hours before testing.

Testing Equipment

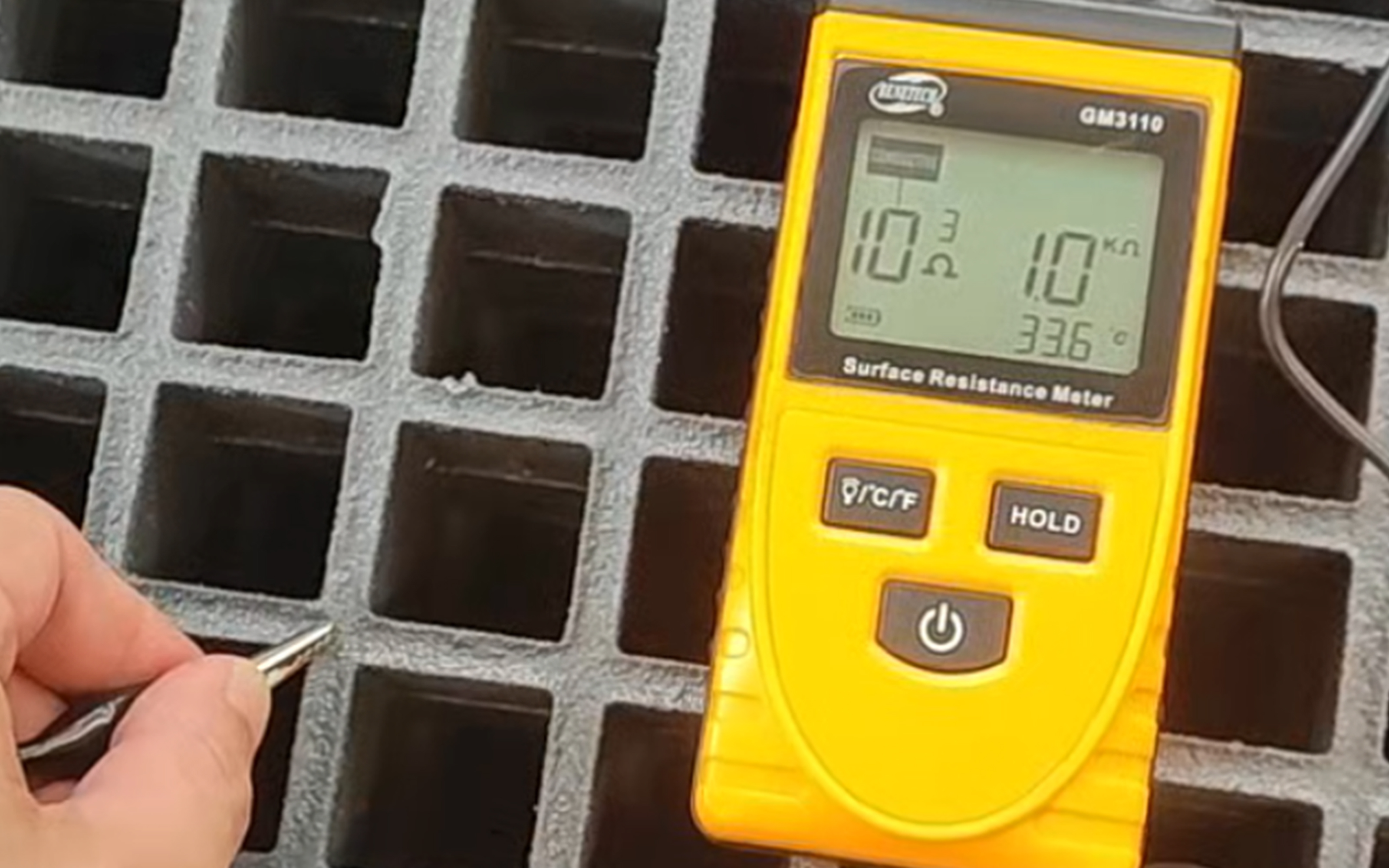

  1. Resistance Meter: Use a high-quality resistance meter capable of measuring surface resistances up to 10^12 ohms.
  2. Probes: Equip the meter with suitable probes, ensuring good contact with the grating surface.

Test Procedure

  1. Setup: Place the sample on a non-conductive surface to avoid interference.
  2. Measurement: Position the probes on the surface, maintaining a specific distance as per standard guidelines.
  3. Recording: Record the resistance value displayed on the meter. Repeat the measurement at multiple locations on the sample to ensure accuracy.

Interpreting Results

  • Low Resistance: A low surface resistance indicates good conductivity, which might not be desirable in all applications.
  • High Resistance: A higher surface resistance is preferred for preventing static buildup, making it suitable for hazardous environments.

Conclusion

Conducting a surface resistance test on FRP grating is a crucial step in ensuring safety and compliance with industry standards. By following the outlined methodology, professionals can accurately assess the material's suitability for specific applications, mitigating risks associated with static electricity. Regular testing and adherence to specifications will enhance the performance and longevity of FRP grating in various industrial settings.

For further insights and details on FRP testing methods, professionals are encouraged to consult the relevant ASTM or ISO standards.
